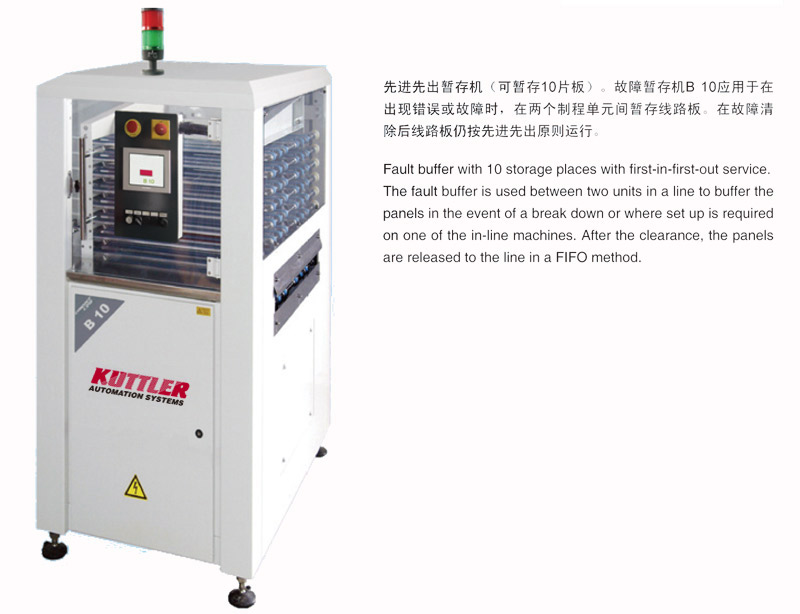

B10
Wed, 16 Sep 2020View: 683



Specifications:
Panel thickness: 0.05mm
Panel size max: 640x640mm
Panel size min: 250x250mm
Storage capacity: 10panels
Power supply: 220V/50Hz/0.51Kw/1.64A
Air consumption: 0.18L/min

Features:
Siemens S7 control user-friendly touchscreen
No panel size adjustment necessary
Variable working direction
Easy installation
MTBF ≥ 400 hours



Machine Dimensions:
Length: 850mm
Width: 1,300mm
Height: 1,925mm
Weight: 490kg
