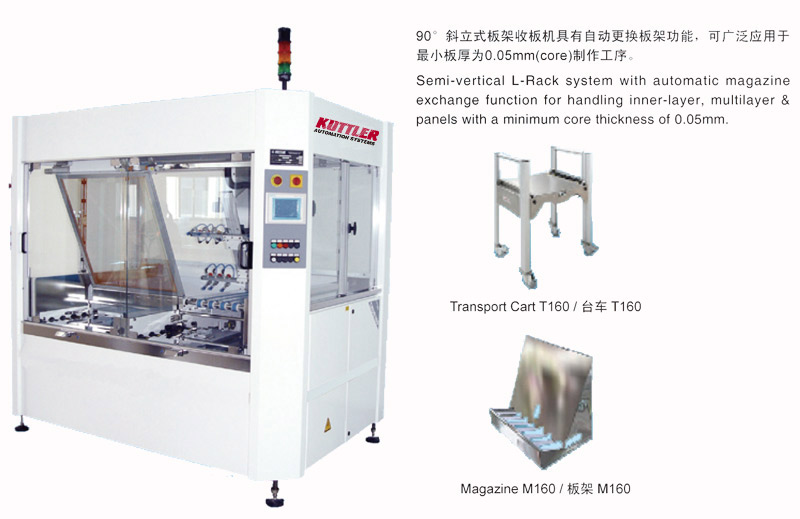

RLE / RUE 160
Wed, 16 Sep 2020View: 683



Specifications:
Panel thickness: 0.05mm-4.20mm
Panel size max: 640x640mm
Panel size min: 300x300mm
L-Rack stacking height max: 160mm
Cycle time: 5sec/panel
Panel weight max: 2kg/panel
Warping & twisting of panels max: 1% on panel edge
Working height: 920±50mm
Power supply: 380V/50Hz/3.0Kw/7.90A
Air consumption: 180L/min

Features:
Siemens S7 control user-friendly touchscreen
Variable working direction
Easy installation
MTBF ≥ 400 hours
Incl. 2 magazines in unit price













Machine Dimensions:
Length: 1,440mm
Width: 2,240mm
Height: 2,100mm
Weight: 1,390kg
