BLP / BUP 250

Wed, 16 Sep 2020View: 767

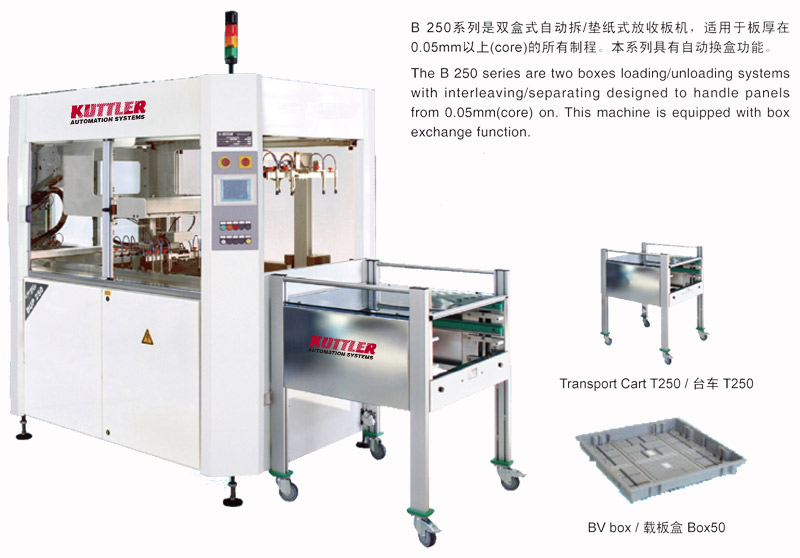

Specifications: Panel thickness: 0.05mm-4.20mm Panel size max: 617x617mm Panel size min : 300x300mm Box stacking height max: 50mm Cycle time min: 8sec/panel Power supply: 380V/50Hz/4.23Kw/11.2A Air consumption: 345L/min	Features: Siemens S7 control user-friendly touchscreen Variable working direction Easy installation MTBF ≥ 400 hours Incl. 2 boxes in unit price Other panel sizes available on request Stated cycle time based on original components

Machine Dimensions: Length: 1,900mm Width: 1,420mm Height: 2,100mm	Different Units Available: BLP 250: Box loader with separating BUP 250: Box unloader with interleaving Single box system also available
