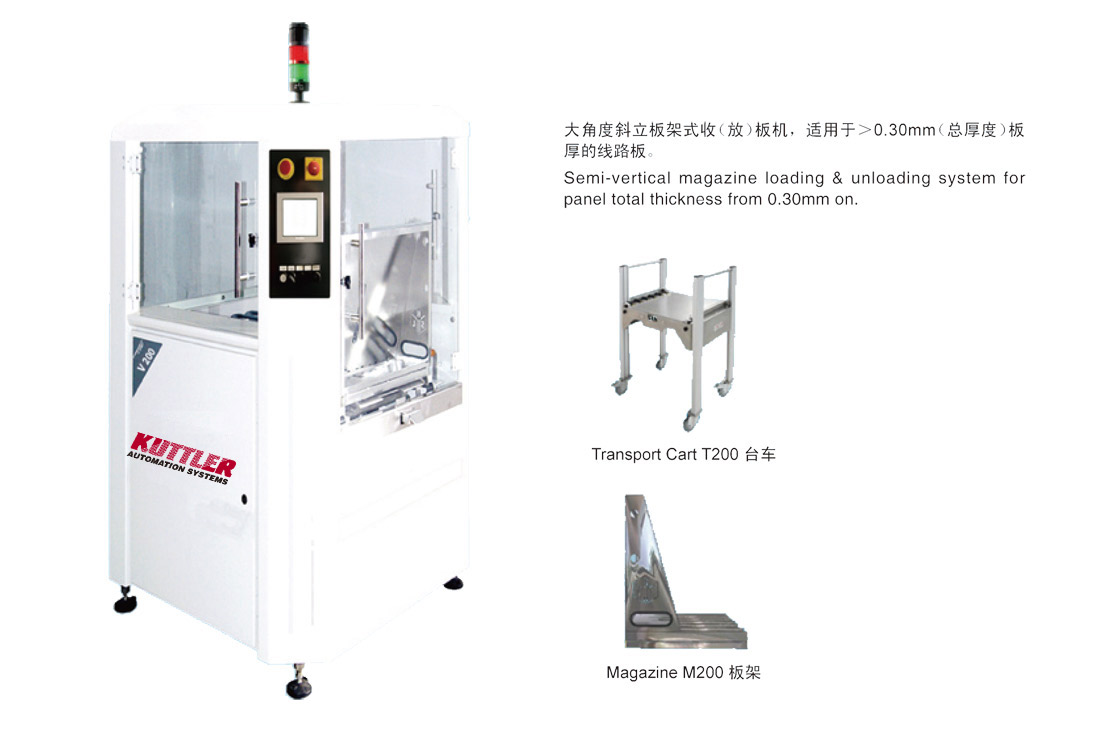

V 200
Wed, 16 Sep 2020View: 1634

Specifications:
Panel thickness: 0.03mm-3.20mm
Panel size max: 610x610mm
Panel size min: 300x300mm
L-Rank stacking height max: 200mm
Cycle time: 10sec/panel
Panel weight max: 2kg/panel
Warping & twisting of panels max: 1% on panel edge
Working height: 920±50mm
Power supply: 220V/50Hz/0.28Kw/1.30A
Air consumption: 75L/mi

Features:
Siemens S7 control user-friendly touchscreen
Variable working direction
Easy installation
MTBF ≥ 400 hours
Incl. 1 carrier in unit price
High-speed handling also available











Machine Dimensions:
Length: 1,150mm
Width: 1,300mm
Height: 1,700mm
Weight: 490kg
